Replaceable Covers Information for the Intel® NUC
Most Intel® NUC products have replaceable top chassis covers. You can replace the cover with a version sold from one of our Intel Innovation Partners, who offer covers with features like:
- VGA and DVI connectors
- Wireless charging
- Extra USB ports
Intel® NUC Innovation Partners
You can also create your own cover
System integrators and end users can use a 3-D printer to create a customized design. You can use a 3-D printer to:
- Create a cosmetic (nonfunctional) cover with a personalized logo (ideal for product differentiation and branding).
- Create a taller customized cover that provides headroom to add third-party hardware features:
- Extra ports, such as RS232 COM ports or USB ports, by connecting to onboard headers
- SDXC card readers
- TV tuners
You can download cover drawings to use with 3-D printers below. Intel provides these materials as-is, with no express, or implied warranties.
|Intel® NUC model||Mechanical drawing .STEP file (for CAD)||Inside lid drawing|
|NUC13 Pro Kit/Mini PC NUC13AN and NUC13LC||NUC13AN-NUC13LC-Top_Cover.zip|
|NUC 12 Enthusiast Kit - NUC12SNKi72||NUC12SN-Cover.zip (778 KB)|
|NUC12 Pro Kit/Mini PC NUC12WS||NUC12WS-Cover.zip (164 KB)|
|NUC11 Enthusiast Kit/Mini PC NUC11PH||NUC11PH-Cover.zip (958 KB)|
|NUC11 Pro Kit/Mini PC NUC11TN||NUC11TN-Cover.zip (166 KB)|
|NUC11 Performance Kit/Mini PC NUC11PA||NUC11PA-Cover.zip (144 KB)|
NUC10i7FN, NUC10i5FN, NUC10i3FN

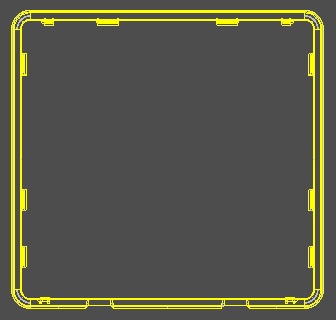

|NUC-Cover.zip (278 KB)|

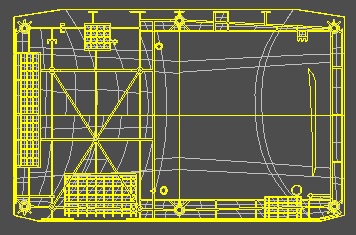

|NUC8i7HxK-Cover.zip (1.75 MB)|
|NUC6i7KYK||NUC6i7KYK-Cover.zip (829 KB)|
|NUC-Legacy-Cover.zip (225 KB)|
NUC-Top-Button-Cover.zip (243 KB)
1 You can find more information in the LID Customization for the Intel® NUC NUC8i7HxKx page.
Can you give me some information about the file formats?
|STEP||Stands for STandard for the Exchange of Product. This file extension is for a 3-D graphics file used by CAD software, such as AutoCAD* or SolidWorks*.|
